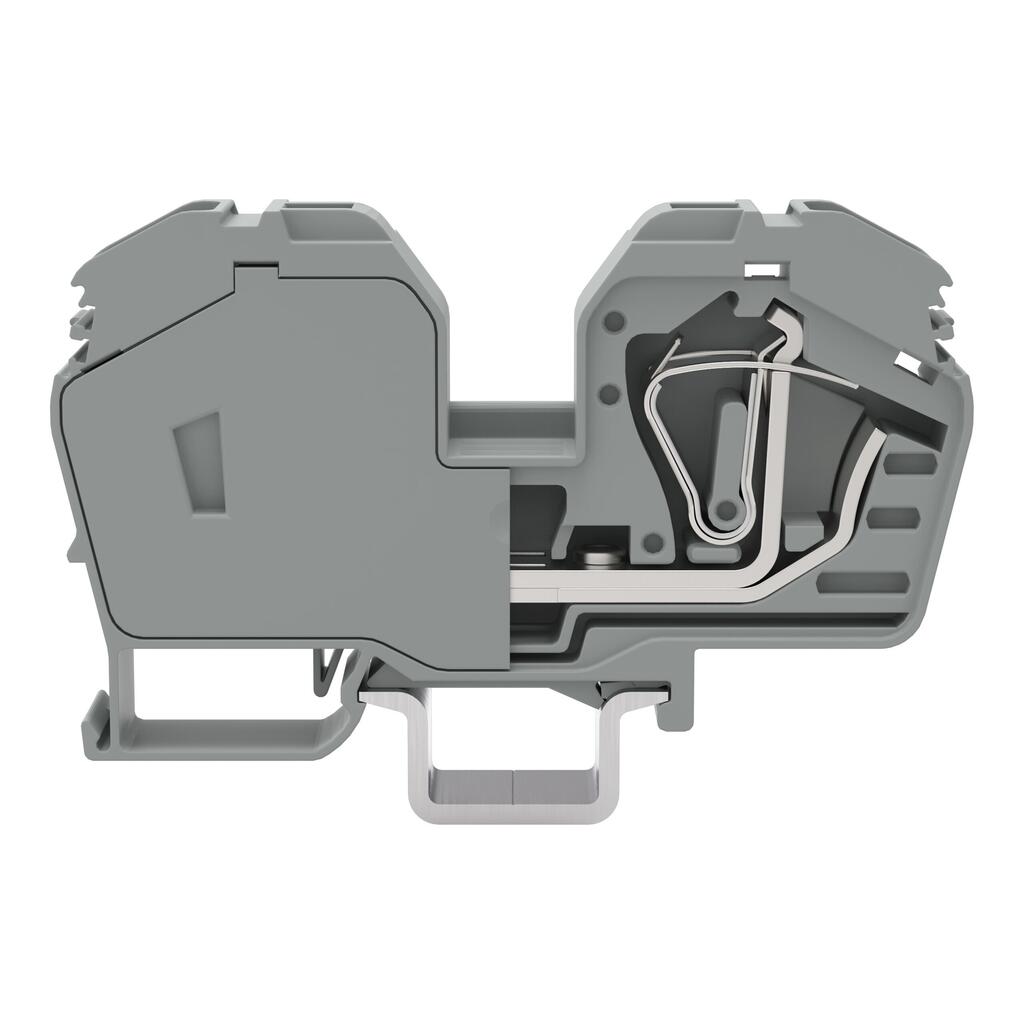

2-conductor through terminal block; 35 mm²; with integrated end plate; side and center marking; only for DIN 35 x 15 rail; CAGE CLAMP®; 35,00 mm²; gray
2-conductor through terminal block; 35 mm²; with integrated end plate; side and center marking; only for DIN 35 x 15 rail; CAGE CLAMP®; 35,00 mm²; gray
Regular price
R 321.78 ZAR
Regular price
Sale price
R 321.78 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Electrical data
Ratings per IEC/EN
Ratings per
IEC/EN 60947-7-1
Overvoltage category
III
III
II
Pollution degree
3
2
2
Nominal voltage
1000 V
-
-
Rated surge voltage
12 kV
-
-
Rated current
125 A
-
-
Ratings per IEC/EN 2
| Rated voltage (III/3) 2 | 1500V |
| Rated surge voltage (III/3) 2 | 12kV |
Power Loss
| Power loss, per pole (potential) | 4.062W |
| Rated current IN for specified power loss | 125A |
| Resistance value for specified, current-dependent power loss | 0Ω |
Connection data
| Clamping units | 2 |
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection 1
| Connection technology | CAGE CLAMP® |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 35 mm² |
| Solid conductor | 6 … 35 mm² / 10 … 2 AWG |
| Fine-stranded conductor | 6 … 35 mm² / 10 … 2 AWG |
| Strip length | 23 mm / 0.91 inches |
| Wiring direction | Front-entry wiring |

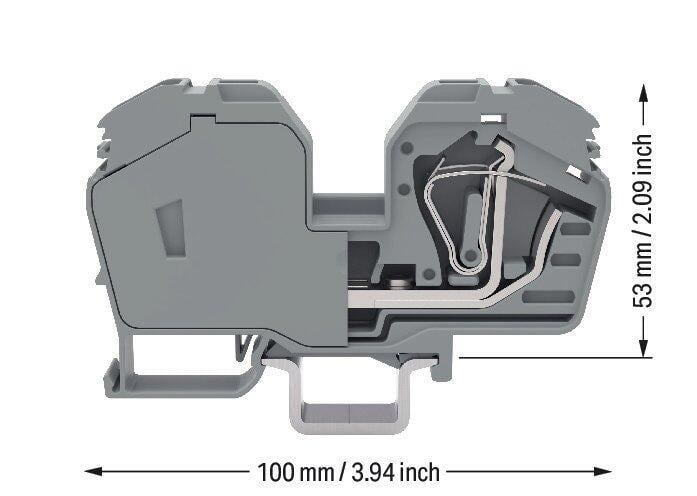

Physical data
| Width | 16 mm / 0.63 inches |
| Height | 100 mm / 3.937 inches |
| Depth from upper-edge of DIN-rail | 53 mm / 2.087 inches |
Mechanical data
| Mounting type | |
| Mounting type | DIN-35 rail |
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 1.078MJ |
| Weight | 87.3g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ECCN | NO DATA |
| PU (SPU) | 15 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4045454218713 |
| Customs tariff number | 85369010000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
