| Weight | 0.137 kg |
|---|---|
| Dimensions | 66 × 26 × 85 mm |
1
/
of
1
CBI

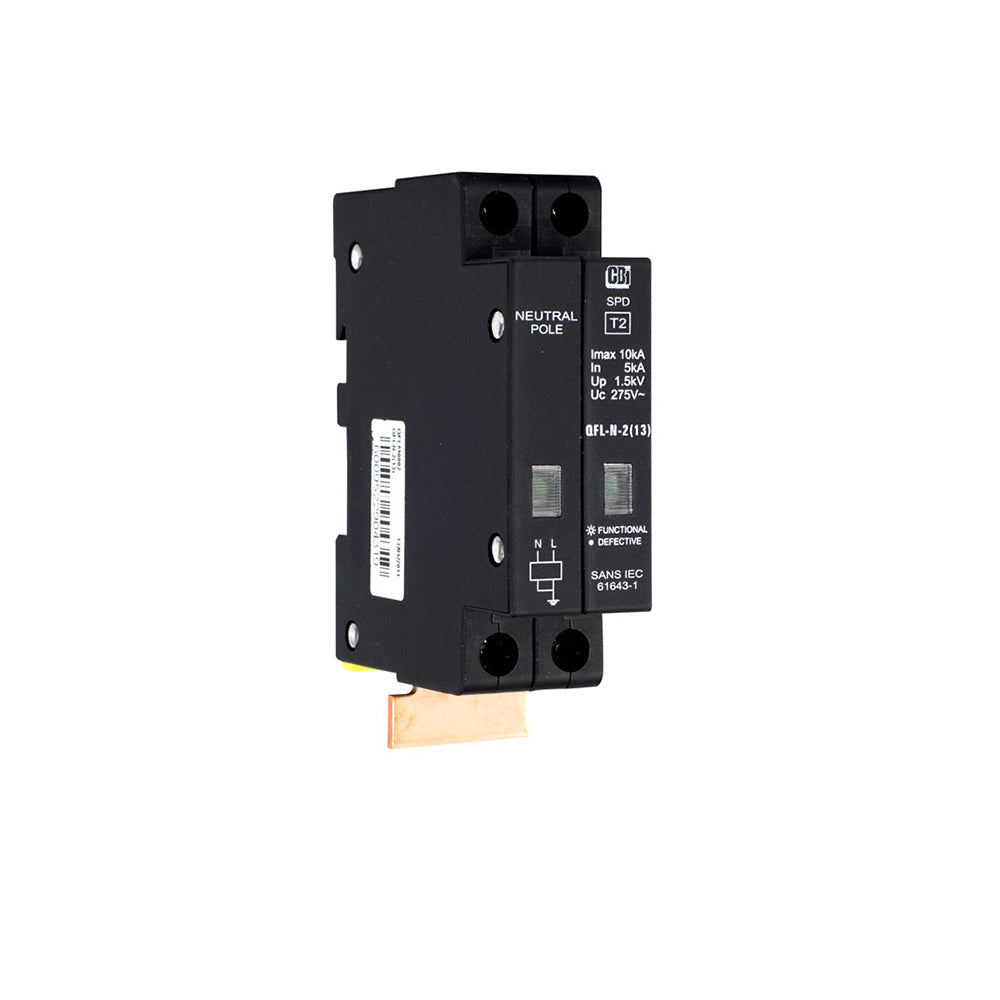

CBI QFLN-2(13) Surge Arrestor
CBI QFLN-2(13) Surge Arrestor
Regular price
R 693.75 ZAR
Regular price
Sale price
R 693.75 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The QFL range of rail mounted surge protection devices are 13 mm in width per pole and Class II devices. The device is fitted with a LED indicator indicating the SPDs condition: while ON, the SPF is functional, if OFF and the mains power is still available, the SPD is no longer functional and should be replaced. The device is a voltage limiting / clamping type with MOV.
Features & Benefits
- SANS 61643-1
- Clip-in on both DIN and CBI mini rail
- DIN mount in grey with 45 mm front escutcheon
- Dual (DIN & CBI mini rail) mount in black with 57 mm front escutcheon
- LED indication of the SPD’s condition – while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaced
- Thermal disconnect device (prevent potential thermal runaway problems)
- One port SPD (no series impedance)
- Voltage limiting / clamping-type SPD (MOV)
- IP 20 rating
Specifications
