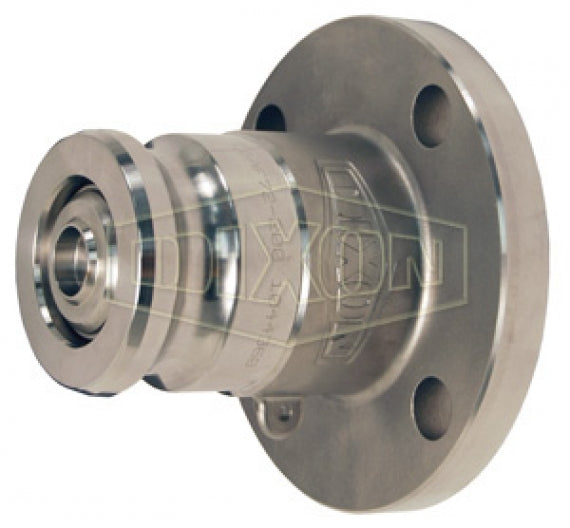

- Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
- For use in transfer of hazardous fluids
| Maximum Operating Pressure | |
|---|---|
| Weight |
18.55 lb
|
| Break Quantity |
0
|
| Optional Package/Box Quantity |
0
|
| Material |
Stainless Steel
|
| Seal |
Viton A or PTFE Encapsulated Silicone
|
| Adapter Size |
4"
|
| Flange Size |
3"
|
Details
Applications
Compatibility & Interchange Data
- Compatible with most other brands of cam and groove style dry disconnects
- Fully interchangeable with Kamvalok (OPW trademark) style fittings
Construction
- Stainless steel piston
- Stainless steel corrosion resistance is comparable to 304 stainless steel
Description
Cam & Groove Style
Note
Contact Dixon™ at 800-355-1991 for chemical compatibility, size, material selection and special configurations.
Safety Notes
For pressure ratings at other temperatures, contact Dixon™.
Use
- Use with DBC or D2C style couplers
- Use with standard cam and groove dust caps sized one size larger than the dry disconnect size
- Use Cam & Groove Dust Cap Size: 4"
