Einhell | Bandsaw 305mm TC-SB 305 U
Einhell | Bandsaw 305mm TC-SB 305 U

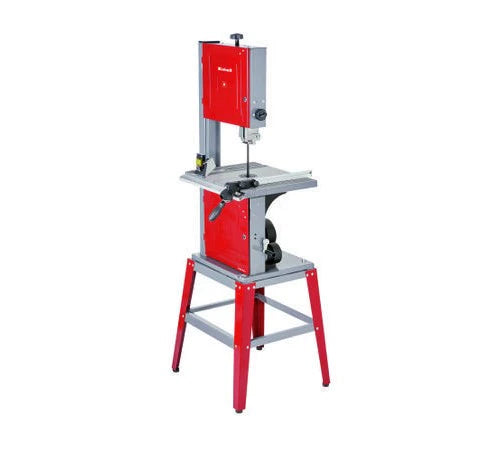

The TC-SB 305 U bandsaw is a powerful, high-quality floor-mounted tool for exacting demands. It offers ambitious DIY enthusiasts numerous options for making exact longitudinal, miter or free-hand cuts in wood, plastic and similar materials.
Its high-grade 750 W motor holds plenty of power in reserve for materials which are hard to cut. The saw has a belt run adjustment facility and a height-adjustable bandsaw guide with blade guard. The two bandsaw speeds can be set quickly and easily using the belt drive. The TC-SB 305 U has a saw table which is infinitely tiltable from 0° to 45°.
For exactly guided cuts it has an infinitely adjustable angle stop and a parallel stop with quick adjustment. Safe stability and an optimum working height are assured by the robust support feet. A dust extractor port is provided, as is the mandatory safety push stick. The electric motor has a zero voltage switch for additional protection in case of power failures.

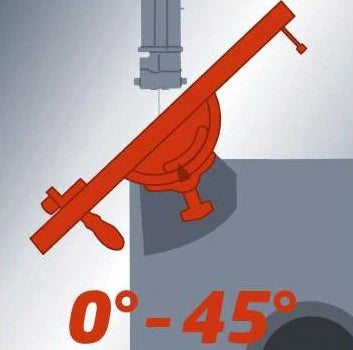

- Infinitely adjustable saw table (0° to 45°)

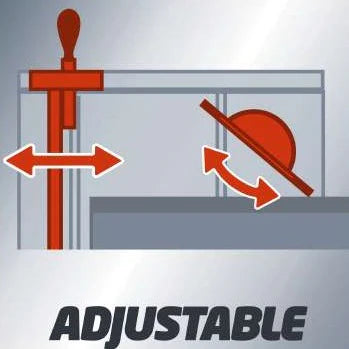

- Height adjustment of the blade guard without tools
- Support feet for safe stability
- Infinitely adjustable angle stop (-60° - 60°)
- Parallel stop with quick adjustment for straight cuts
- Zero voltage switch for protection in case of power failures
- Push stick for safe use

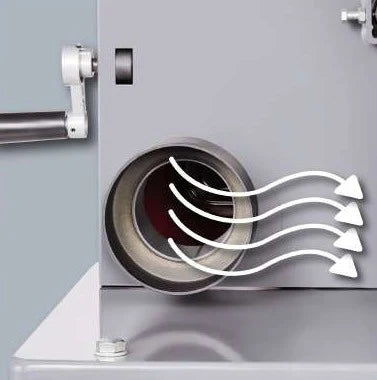

- Connection for extractor d=70mm with adapter d=100mm
- Belt run adjustment using the top roller

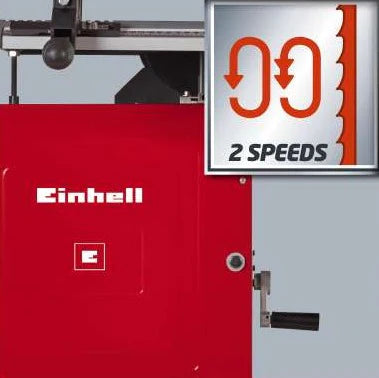

- 2 bandsaw speeds can be set using belt drive
Specifications
Cutting height at 45° | 75mm |

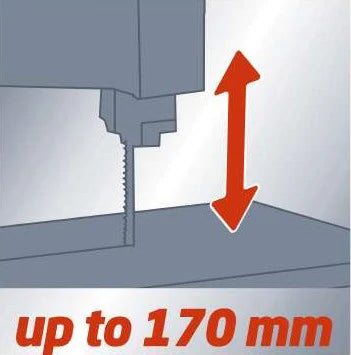

Cutting height at 90° | 170mm |
Motor type | Brush motor |
Power | 750W |
Product weight | 57kg |
Saw belt depth | 12,7mm |
Saw belt length | 2320mm |
Saw belt speed | 800m/min |
Suction adapter diameter | 100mm |
Table inclination left | 0° |
Table inclination right | 45° |
