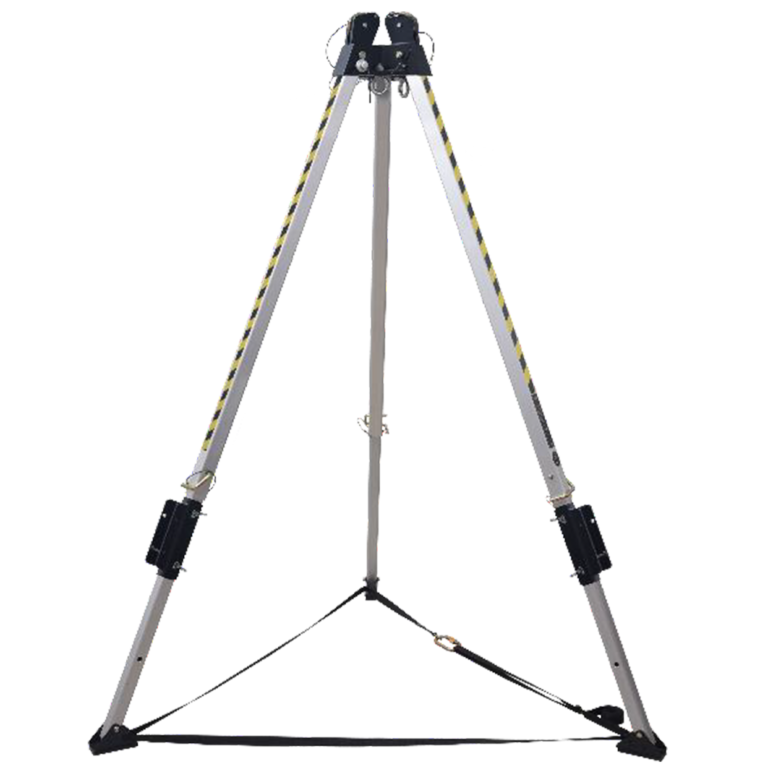

Karam Tripod with Double Pulley Head

Tripod is one such product that can be used for easy access by a worker into confined spaces such as man-holes, tanks, etc. It provides a means of controlled ascent and descent, as well as protection from fall, should the depth of the space require it.

Description

• Comes with double integral head mounted pulleys which is permanently incorporated in the cast aluminum head of the Tripod and provides independent passing over of cable from a Winch and a Retrieval Block.
• Consists of two auxiliary eye bolts as attachment points.
• Material of cast head and legs: Aluminium Alloy.
• Consists of Steel support-shoes provided with rubber sole to increase friction and impart more stability.
• Strength of anchorage point is greater than 23 kN.
• Every Tripod is provided with pre-installed universal mounting attachments to easily mount the Winch and Retrieval Blocks.
• Can be used with Winches PN 801(DP), PN 817(DP), when used with PN 800(44) Winch Bracket and Retrieval Blocks PCGS 20R, and PCGS 30R when used with PN 800(45) Retrieval Bracket.
• Comes with a sturdy bag to pack.
