Loffelstein

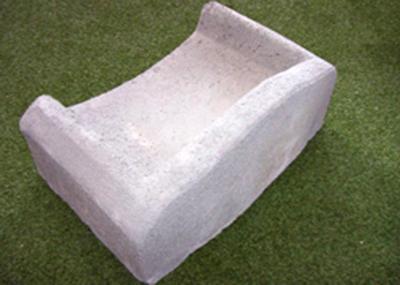

Loffelstein Retaining Block - L300
Loffelstein Retaining Block - L300
Regular price
R 185.00 ZAR
Regular price
Sale price
R 185.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

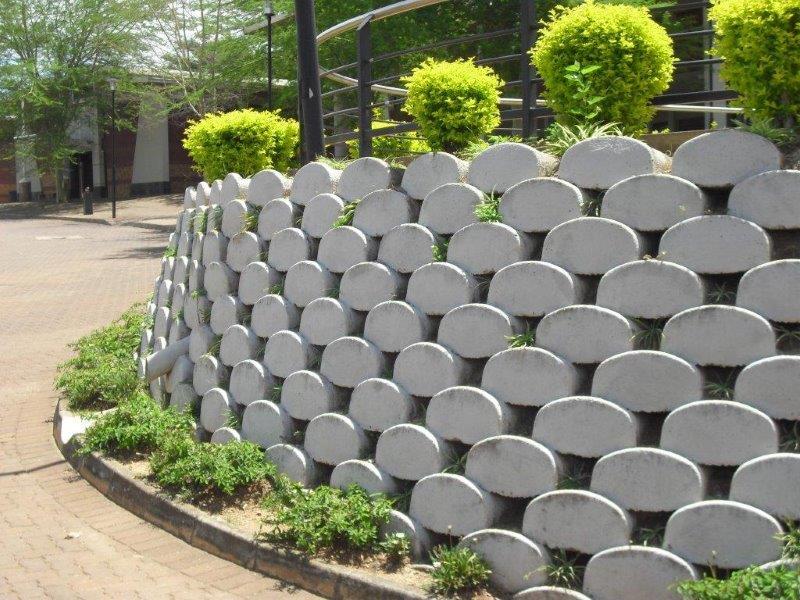

Löffelstein® is a dry stacking, interlocking retaining system. It is unique because of its versatility, adaptability and plantability.
- Structurally stable - no need for additional concrete infill
- All Löffelstein® systems are available in vertical and heavy duty applications
- Ideally suited for retaining cut or fill slopes between 3 and 15m high.
- Three basic block sizes - L300/L500/L750.
| TECHNICAL DATA | L300 | L500 | L750 |
|---|---|---|---|
| Mass per block - approx. |
34kg | 52kg | 82kg |
| Length | 300mm | 500mm | 750mm |
| Width | 450mm | 450mm | 450mm |
| Height | 170mm | 170mm | 170mm |
| No. of units per linear metre |
1.6 | 1.6 | 1.6 |
| No. of blocks per m2 (not influenced by the wall’s angle) | |||
| - Straight line | 9.5 | 9.5 | 9.5 |
| - Curved structures | 10-12 | 10-12 | 10-12 |
| Variable wall angle options | |||
| - Maximum std blocks | 70° | ||
| - Maximum std blocks | 87° | ||
