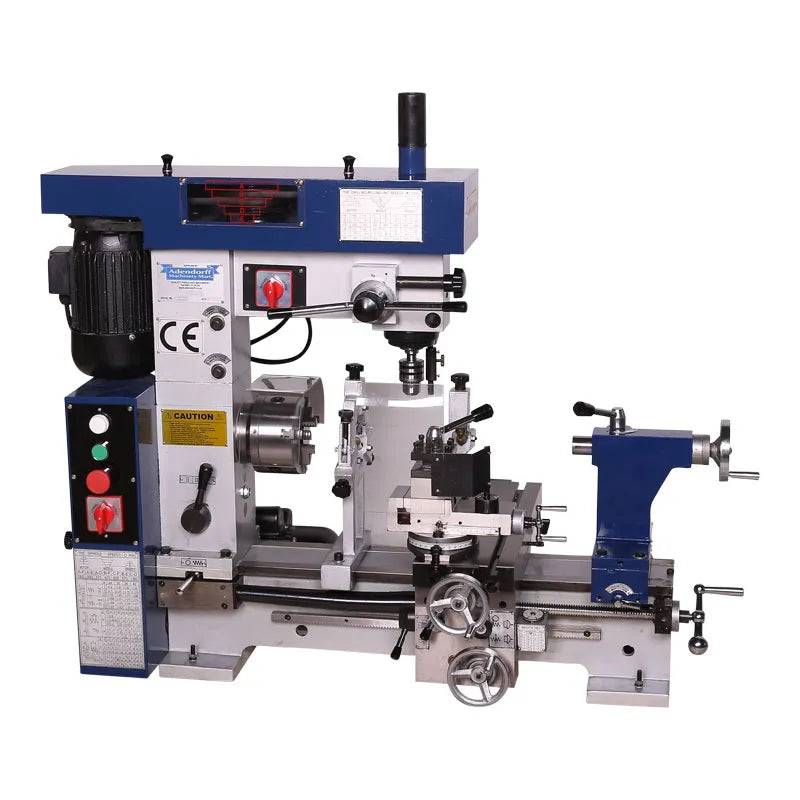

MAC AFRIC HQ800 Lathe, Drilling & Milling Machine
MAC AFRIC HQ800 Lathe, Drilling & Milling Machine
Regular price
R 55,950.00 ZAR
Regular price
Sale price
R 55,950.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
A truly remarkable concept! Lathe + Drill/Mill Combo makes this machine the ideal multi-functional workshop must-have. Fitted with two motors (Lathe & Mill).
Power Output
550 W
Voltage
230 V @ 50 HZ
Max. Swing Over Bed
440 MM
Table Size
475 x 160 MM
Tail Stock Barrel Taper
MT3
Drilling Diameter
15 MM
Max. Drilling Capacity
22 MM
Max. End Milling Cutter
80 MM
Distance Between Centres
500 MM
Spindle Travel
110 MM
Amount of Power Feed
0.05 - 0.35 MM (0.002" - 0.014" IN)
Max. Face Milling Capacity
28 MM
Spindle Taper
MT4
Threads That Can be Cut
0.2 - 6 MM / 4 - 120 TPI
Spindle Bore
28 MM
Range of Spindle Speeds
16 Steps / 160 - 1300 RPM
Cross Travel
740 MM
Longitude Travel
800 MM
