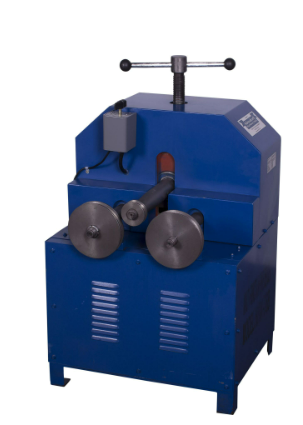

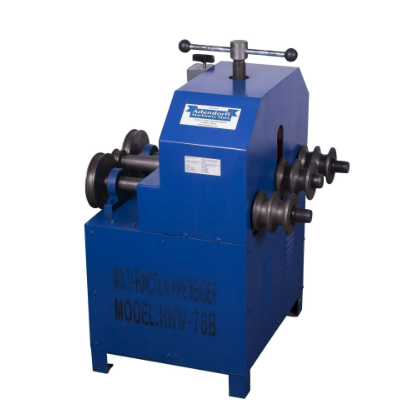

MAC AFRIC Multifunctional Electrical Round & Square Pipe Bender

With the ability to easily bend large diameters into full circles or arcs, this pipe bender is perfectly suited for constructing greenhouses or creating intricate metal frameworks. It works efficiently with stainless steel pipes, thick square pipes, and soft steel pipes, offering versatility for various project requirements.

Hand-Adjustable Shafts: The machine features adjustable shafts that can be fine-tuned by hand, including two main shafts and one driven shaft, allowing for precision bending and versatility.

Large Diameter Bending: For projects requiring circular or arc shapes, this bender excels when the desired diameter is at least twenty times greater than the pipe diameter, ensuring smooth curves and circles.

Custom Die Options: Range of bending dies to suit your specific bending needs. The dies are cast from special steel, ensuring a long service life with consistent performance.

Key Specifications:

• Voltage: 230 V at 50 Hz
• Round Formers: 16, 19, 22, 25, 32, 38, 51, 63, 76 mm
• Square Formers: 16, 19, 22, 25, 30, 38, 40, 50 mm
• Bending Radius: Ranging from 320 mm to 1520 mm
• Motor: 220 V, 1.5 KW, 1400 rpm

Die Variations: Included dies for round tubes include combinations like 16 & 63 (2-in-1), 25 & 51 (2-in-1), 32 & 38 (2-in-1), and 76 mm. For square tubes, combined dies such as 30 & 50 (2-in-1) and 16 & 25 & 40 (3-in-1) are available, ensuring adaptability for a wide range of tube sizes.

Dies for Round Tubes (mm):

• 16 mm: Wall thickness up to 0.5 mm for Stainless Steel, 0.8 mm for Mild Steel
• 19 mm: Wall thickness up to 0.8 mm for Stainless Steel, 1.0 mm for Mild Steel
• 22 mm: Wall thickness up to 1.0 mm for Stainless Steel, 1.2 mm for Mild Steel
• 25 mm: Wall thickness up to 1.0 mm for Stainless Steel, 1.2 mm for Mild Steel
• 32 mm: Wall thickness up to 1.2 mm for Stainless Steel, 1.5 mm for Mild Steel
• 38 mm: Wall thickness up to 1.5 mm for Stainless Steel, 1.5 mm for Mild Steel
• 51 mm: Wall thickness up to 1.5 mm for Stainless Steel, 1.8 mm for Mild Steel
• 63 mm: Wall thickness up to 2.0 mm for Stainless Steel, 2.3 mm for Mild Steel
• 76 mm: Wall thickness up to 2.0 mm for Stainless Steel, 2.3 mm for Mild Steel

Dies for Square Tubes (mm):

• 16 mm: Wall thickness up to 0.5 mm for Stainless Steel, 0.8 mm for Mild Steel
• 19 mm: Wall thickness up to 0.8 mm for Stainless Steel, 1.0 mm for Mild Steel
• 22 mm: Wall thickness up to 1.0 mm for Stainless Steel, 1.2 mm for Mild Steel
• 25 mm: Wall thickness up to 1.0 mm for Stainless Steel, 1.2 mm for Mild Steel
• 30 mm: Wall thickness up to 1.2 mm for Stainless Steel, 1.5 mm for Mild Steel
• 38 mm: Wall thickness up to 1.5 mm for Stainless Steel, 1.5 mm for Mild Steel
• 40 mm: Wall thickness up to 1.5 mm for Stainless Steel, 1.8 mm for Mild Steel
• 50 mm: Wall thickness up to 1.5 mm for Stainless Steel, 1.8 mm for Mild Steel
