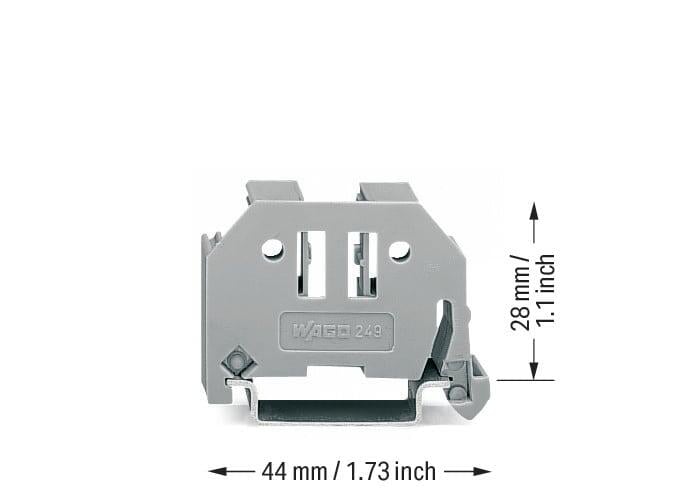

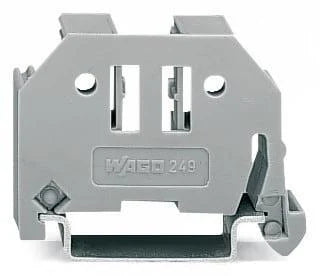

Screwless end stop; 10 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray
Screwless end stop; 10 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray
Couldn't load pickup availability
| Note |
Snap on – that's it! Assembling the new WAGO screwless end stop is as simple and quick as snapping a WAGO rail-mount terminal block onto the rail. Tool free! A tool-free design allows rail-mount terminal blocks to be safely and economically secured against any movement on all DIN-35 rails per DIN EN 60715 (35 x 7.5 mm; 35 x 15 mm). Entirely without screws! The “secret” to a perfect fit lies in the two small clamping plates which keep the end stop in position, even if the rails are mounted vertically. Simply snap on – that's it! In addition, costs are significantly reduced when using large numbers of end stops. Additional benefit: Three marker slots for all WAGO rail-mount terminal block markers and one snap-in hole for WAGO adjustable height group marker carriers offer individual marking options. |
| Mounting type | DIN-35 rail |
| Width | 10 mm / 0.394 inches |
| Height | 44 mm / 1.732 inches |
| Depth | 35 mm / 1.378 inches |
| Depth from upper-edge of DIN-rail | 28 mm / 1.102 inches |
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.145MJ |
| Weight | 4.9g |
| Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-35 |
| eCl@ss 9.0 | 27-14-11-35 |
| ETIM 9.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ECCN | NO DATA |
| PU (SPU) | 50 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143314169 |
| Customs tariff number | 39269097900 |
| RoHS Compliance Status | Compliant,No Exemption |
